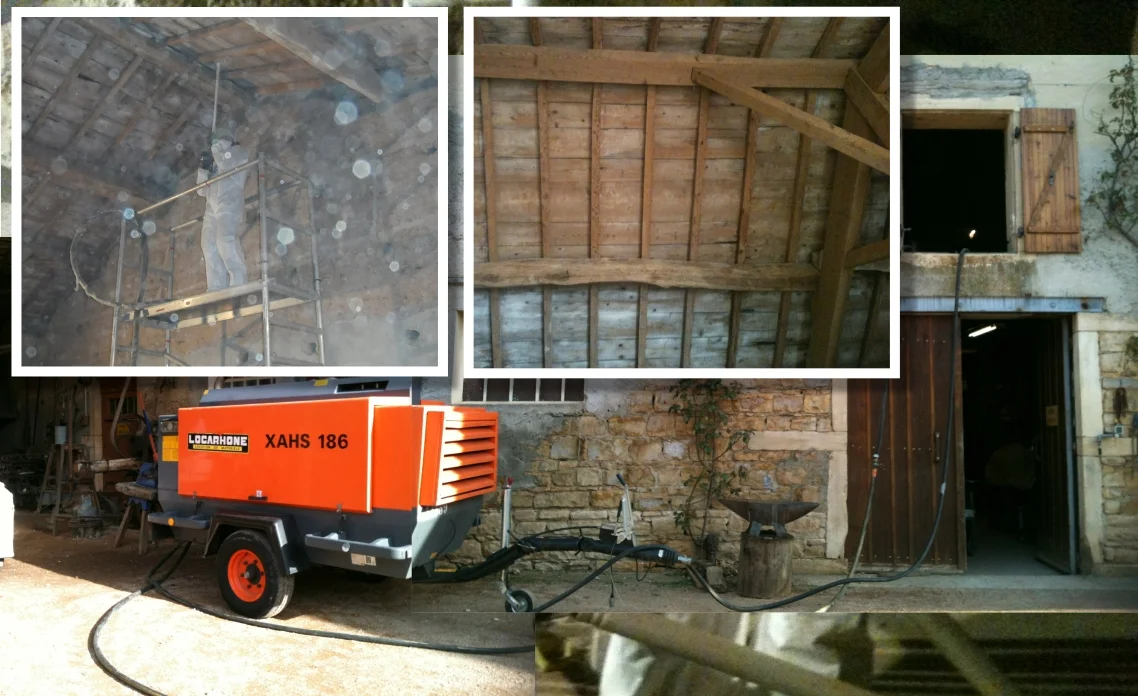

Dry ice blasting operation on structural framework. Using a compressor at 12 bars and air volume of 10 000 l/min, to supply two dry ice blasters, totaling 5 000 l/min/machine...
The effectiveness of dry ice blasting depends on several factors, among which the volume of compressed air used plays a crucial role. Discover why air volume is so important and how it affects the performance of dry ice cleaning.
The impact of air flow rate on dry ice blasting efficiency
Le compressed air flow rate, measured in liters per minute (l/min), determines the speed and force with which dry ice is projected onto the surface being cleaned (in addition to blast pressure). A higher flow rate allows for a faster projection and more effective of ice particles, which optimizes the mechanical action of cleaning and promotes detachment waste, Contaminants.
En France, air volumes used for dry ice blasting generally range between 800 et 5 000 l/min, potentially reaching 12 000 l/min for certain specific applications. It is worth noting that the majority of applications (approximately 85%) are performed with a compressed air volume of less than or equal to 4 000 l/min.

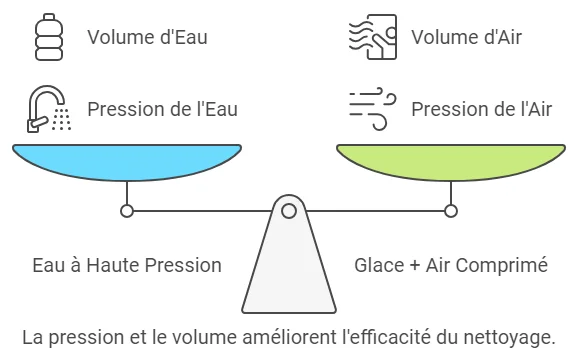

Analogy with high-pressure cleaning
To better understand the importance of air volume in dry ice blasting, it can be compared to water flow rate in a and allows moss removal from facades or roofs even on natural slate and terracotta tiles. No chemical products, onlyis pressure water pressure corresponds to the "cutting" force that dislodges dirt, while water flow represents the capacity to "carry away" these contaminants. Similarly, in dry ice blasting, air pressure ensures the initial impact on dirt and air volume "carries alongthese particles to remove them from the surface. The greater the air volume, the more effective the cleaning will be fast et effective.
The essential role of air compressors in dry ice blasting
Le air compressor is a central element in a dry ice blasting system. It is responsible for supplying the compressed air necessary for dry ice projection. Choosing a compressor suited to the specific needs of the application is therefore crucial to ensure optimal performance of the cleaning process.
The main criteria to consider when choosing a compressor are:
- Air flow rate: expressed in l/min, it must be sufficient to ensure effective dry ice projection.
- Air pressure: expressed in bars, it must be adapted to the type of contaminant and the surface being cleaned.
- Air quality: compressed air must be clean and dry to avoid damaging equipment and contaminating surfaces.
In most cases, the factory's compressed air is sufficient for dry ice blasting operations. However, you may consider purchasing a new compressor (see below), or alternatively a used compressor.
Selection of compressors suitable for dry ice blasting (click on the image)

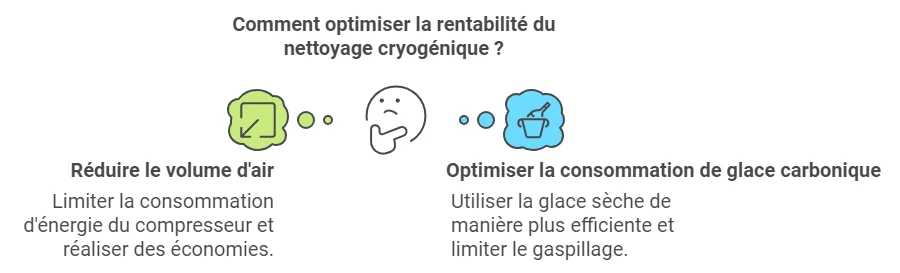

Optimizing air volume: a key factor for dry ice blasting profitability
Beyond cleaning effectiveness, air volume has a direct impact on the profitability of the process. Indeed, compressed air consumption represents a significant portion of the operating cost of a dry ice blasting system.
Optimizing air volume allows you to rreduce energy consumption. Anair volume adapted to the application limits the compressor's energy consumption and achieves savings. Additionally, you will ooptimize your dry ice consumption: an adequate air volume allows dry ice to be used more efficiently and limits waste.
Modern dry ice blasting equipment, such as Cryoblaster® ATX, incorporates technologies that optimize air and dry ice consumption. For example, some machines are equipped with flow control that automatically adjust the air volume based on application requirements. Others offer variable geometry nozzles which allow the shape and size of the dry ice jet to be adapted to optimize cleaning efficiency and air consumption.
Remember : air volume is a determining parameter in the effectiveness and speed of dry ice blasting. It is essential to choose a compressor suited to the specific needs of each application and to adjust the air flow rate with precision to achieve optimal results.
Modern dry ice blasting equipment offers great flexibility by allowing air volume and pressure to be adjusted to adapt to different situations. By mastering this parameter, you will be able to fully leverage the benefits of dry ice blasting and improve the productivity of your cleaning operations.
